Anybus X-Gateway AB7671


Prijs: € 325,00

Anybus X-Gateway AB7671

Anybus X-Gateway AB7671 Anybus X-Gateway AB7671

Beschrijving

Industrieel ethernet module

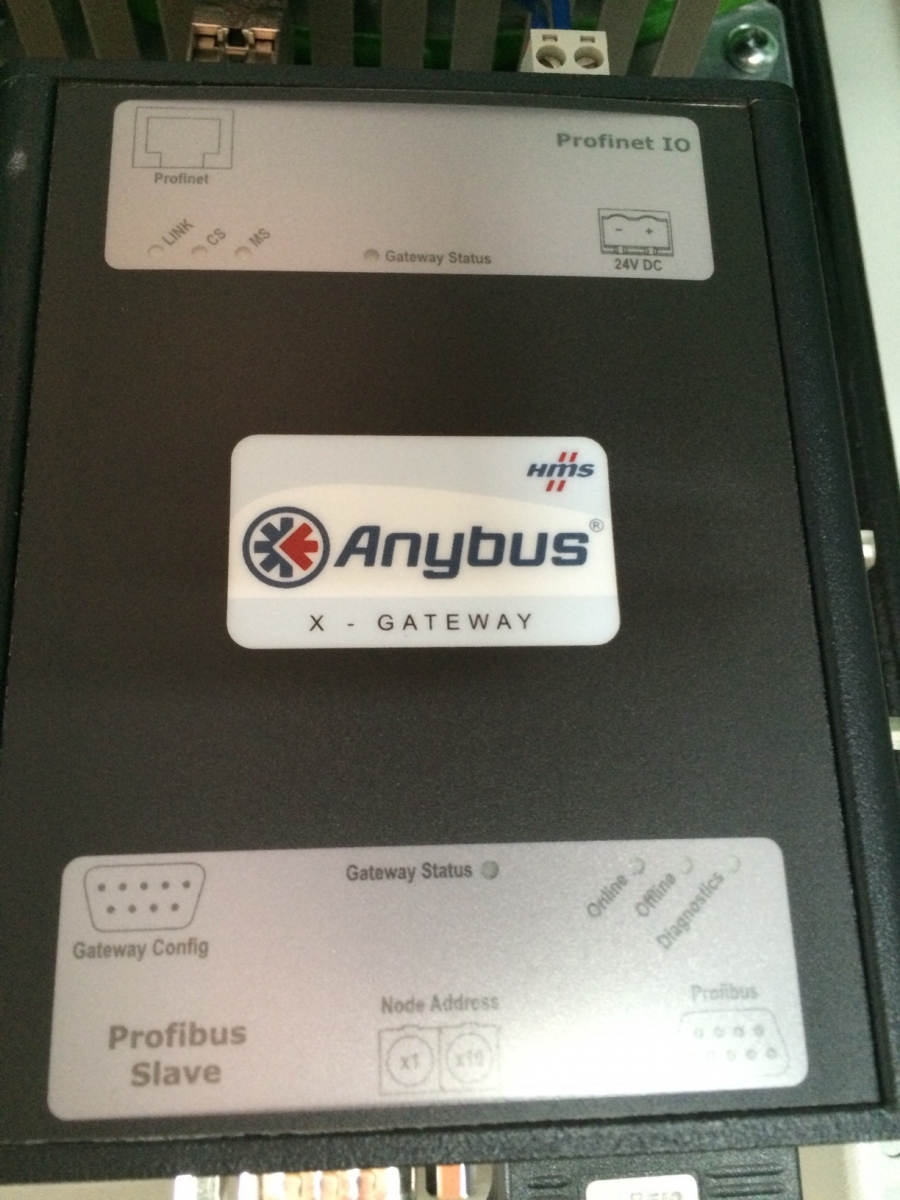

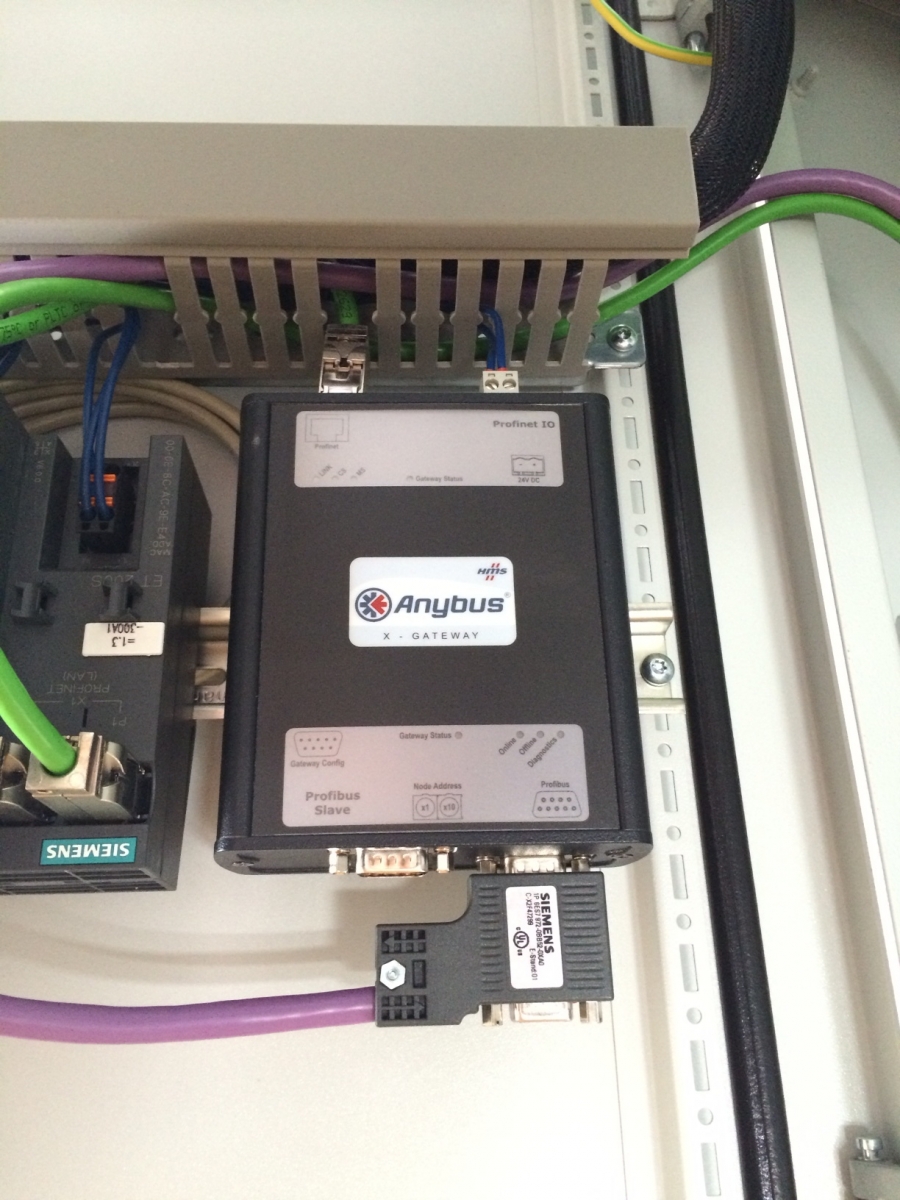

HMS Anybus X-gateway Profibus Slave AB7671

Voor Industrieel Ethernet

Bouwjaar 2009. Tot 2013 gebruikt in een laboratorium ( schone ruimte! ).

4x beschikbaar. Nieuwprijs Euro 850,- per stuk.
Nu voor slechts Euro 325,- per stuk.


Tevens diverse Siemens PLC systemen beschikbaar. Neem contact met ons op voor details.

-----

HMS Industrial Networks - Ethernet/IP Scanner/Master - Profibus Slave -
The Anybus X-gateway copies I/O-data in both directions thus enabling data exchange between the two networks. Default I/O configuration is 20 bytes Input and 20 bytes Output. Changing default settings is very simple and is carried out using the RS232 configuration port and a standard terminal interface on a PC, such as Hyper Terminal for Windows.

The EtherNet/IP Scanner interface supports connection of up to 64 adapters (slaves) at 10/100 Mbit/s. The module also supports IT functionality such as Web server, SSI-scripts, E-mail client and FTP-server. Ethernet settings are configurable through the built-in Web server or the software Anybus IP configuration utility from HMS. The Anybus X-gateway also has on board IP configuration switches. The EtherNet/IP interface module is certified by ODVA and has proven conformance and interoperability with leading PLC's HMI's etc. The configuration of the EtherNet/IP network is done with a built in web
interface or with RS Networx from Rockwell --AB7671




Aanvraagformulier voor dit product

Naam:
Bedrijf:
Telefoonnummer:
E-mail:
Bericht:

HMS Anybus X-gateway Profibus Slave AB7671

Voor Industrieel Ethernet

Bouwjaar 2009. Tot 2013 gebruikt in een laboratorium ( schone ruimte! ).

4x beschikbaar. Nieuwprijs Euro 850,- per stuk.
Nu voor slechts Euro 325,- per stuk.


Tevens diverse Siemens PLC systemen beschikbaar. Neem contact met ons op voor details.

-----

HMS Industrial Networks - Ethernet/IP Scanner/Master - Profibus Slave -
The Anybus X-gateway copies I/O-data in both directions thus enabling data exchange between the two networks. Default I/O configuration is 20 bytes Input and 20 bytes Output. Changing default settings is very simple and is carried out using the RS232 configuration port and a standard terminal interface on a PC, such as Hyper Terminal for Windows.

The EtherNet/IP Scanner interface supports connection of up to 64 adapters (slaves) at 10/100 Mbit/s. The module also supports IT functionality such as Web server, SSI-scripts, E-mail client and FTP-server. Ethernet settings are configurable through the built-in Web server or the software Anybus IP configuration utility from HMS. The Anybus X-gateway also has on board IP configuration switches. The EtherNet/IP interface module is certified by ODVA and has proven conformance and interoperability with leading PLC's HMI's etc. The configuration of the EtherNet/IP network is done with a built in web
interface or with RS Networx from Rockwell --AB7671


Meer informatie

Specificaties
TypeAnybus
Bouwjaar2009
